TensorFlow Model Subclassing and Custom Training Loop

Github Link

https://github.com/Natan-Asrat/tensorflow_model_subclassing

Contact

The Setup

Introduction

In this project i explored how to implement a subclass model, and subclass layer inheriting from tensorflow.keras.models.Model and tensorflow.keras.layers.Layer.

Libraries Used

TensorFlow
numpy
matplotlib

Imports

import tensorflow as tf
import matplotlib.pyplot as plt
from tensorflow.keras.models import Model
from tensorflow.keras.layers import Layer, Dense, Dropout, Softmax, concatenate
from tensorflow.keras.datasets import reuters
from tensorflow.keras.utils import to_categorical

The Code

Create a Simple Model using the Model Subclassing API

class MyModel(Model):
    def __init__(self):
        super(MyModel, self).__init__()
        self.dense_1 = Dense(64, activation='relu')
        self.dense_2 = Dense(10)
        self.dropout = Dropout(0.4)
        self.dense_3 = Dense(5)
        self.softmax = Softmax()
    def call(self, inputs, training=True):
        x = self.dense_1(inputs)
        if training:
            x = self.dropout(x)
        y1 = self.dense_2(inputs)
        y2 = self.dense_3(y1)
        concat = concatenate([x, y2])
        return self.softmax(concat)

model = MyModel()

Custom Layers

class MyLayer(Layer):
    def __init__(self, units, input_dim):
        super(MyLayer, self).__init__()
        self.w = self.add_weight(
            shape=(input_dim, units),
            initializer='random_normal'
        )
        self.b = self.add_weight(
            shape=(units,),
            initializer='zeros'
        )
    def call(self, inputs):
        return tf.matmul(inputs, self.w) + self.b

dense_layer = MyLayer(3,5)

Specify Trainable Weights

class MyLayer(Layer):
    def __init__(self, units, input_dim):
        super(MyLayer, self).__init__()
        self.w = self.add_weight(
            shape=(input_dim, units),
            initializer='random_normal',
            trainable=False
        )
        self.b = self.add_weight(
            shape=(units,),
            initializer='zeros',
            trainable=False
        )
    def call(self, inputs):
        return tf.matmul(inputs, self.w) + self.b

dense_layer = MyLayer(3,5)

Create a Custom Layer to Accumulate Means of Output Values

class MyLayerMean(Layer):
    def __init__(self, units, input_dim):
        super(MyLayerMean, self).__init__()
        self.w = self.add_weight(
            shape=(input_dim, units),
            initializer='random_normal'
        )
        self.b = self.add_weight(
            shape=(units,),
            initializer='zeros'
        )
        self.sum_activation = tf.Variable(
            initial_value=tf.zeros((units,)),
            trainable=False
        )
        self.number_call = tf.Variable(
            initial_value=0,
            trainable=False
        )
    def call(self, inputs):
        activations =  tf.matmul(inputs, self.w) + self.b
        self.sum_activation.assign_add(tf.reduce_sum(activations, axis=0))
        self.number_call.assign_add(inputs.shape[0])
        return activations , self.sum_activation/tf.cast(
            self.number_call, tf.float32
        )

dense_layer = MyLayerMean(3,5)

Test the layer:

y, activation_means = dense_layer(tf.ones((1, 5)))
print(activation_means.numpy())

Output:

[ 0.16241717  0.03885861 -0.07925268]

Create a Dropout Layer as a Custom Layer

class MyDropout(Layer):

    def __init__(self, rate):
        super(MyDropout, self).__init__()
        self.rate = rate

    def call(self, inputs):
        # Define forward pass for dropout layer
        return tf.nn.dropout(inputs, rate=self.rate)

Implement the Custom Layers into a Model

class MyModel(Model):

    def __init__(self, units_1, input_dim_1, units_2, units_3):
        super(MyModel, self).__init__()
        # Define layers
        self.layer_1 = MyLayer(units_1, input_dim_1)
        self.dropout_1 = MyDropout(0.5)
        self.layer_2 = MyLayer(units_2, units_1)
        self.dropout_2 = MyDropout(0.5)
        self.softmax = Softmax()
        self.layer_3 = MyLayer(units_3, units_2)

    def call(self, inputs):
        # Define forward pass
        x = self.layer_1(inputs)
        x = tf.nn.relu(x)
        x = self.dropout_1(x)
        x = self.layer_2(x)
        x = tf.nn.relu(x)
        x = self.dropout_2(x)
        x = self.layer_3(x)
        return self.softmax(x)

Custom Training Loops

Define the Custom Layers and Model

class MyDropout(Layer):

    def __init__(self, rate):
        super(MyDropout, self).__init__()
        self.rate = rate

    def call(self, inputs):
        # Define forward pass for dropout layer
        return tf.nn.dropout(inputs, rate=self.rate)

class MyLayer(Layer):
    def __init__(self, units):
        super(MyLayer, self).__init__()
        self.units = units
    def build(self, input_shape):

        self.w = self.add_weight(
            shape=(input_shape[-1], self.units),
            initializer='random_normal',
            name="kernel"
        )
        self.b = self.add_weight(
            shape=(self.units,),
            initializer='zeros',
            name="bias"
        )
    def call(self, inputs):
        return tf.matmul(inputs, self.w) + self.b

# Build the model using custom layers with the model subclassing API

class MyModel(Model):

    def __init__(self, units_1, units_2, units_3):
        super(MyModel, self).__init__()
        self.layer_1 = MyLayer(units_1)
        self.dropout_1 = MyDropout(0.5)
        self.layer_2 = MyLayer(units_2)
        self.dropout_2 = MyDropout(0.5)
        self.softmax = Softmax()
        self.layer_3 = MyLayer(units_3)

    def call(self, inputs):
        # Define forward pass
        x = self.layer_1(inputs)
        x = tf.nn.relu(x)
        x = self.dropout_1(x)
        x = self.layer_2(x)
        x = tf.nn.relu(x)
        x = self.dropout_2(x)
        x = self.layer_3(x)
        return self.softmax(x)

model = MyModel(64, 64, 46)

Load the Reuters Dataset and Define the class_names

(train_data, train_labels), (test_data, test_labels) = reuters.load_data(num_words=10000)

class_names = ['cocoa','grain','veg-oil','earn','acq','wheat','copper','housing','money-supply',
   'coffee','sugar','trade','reserves','ship','cotton','carcass','crude','nat-gas',
   'cpi','money-fx','interest','gnp','meal-feed','alum','oilseed','gold','tin',
   'strategic-metal','livestock','retail','ipi','iron-steel','rubber','heat','jobs',
   'lei','bop','zinc','orange','pet-chem','dlr','gas','silver','wpi','hog','lead']

Preprocess the Data

def bag_of_words(text_samples, elements=10000):
    output = np.zeros((len(text_samples), elements))
    for i, word in enumerate(text_samples):
        output[i, word] = 1.
    return output

x_train = bag_of_words(train_data)
x_test = bag_of_words(test_data)

Define the Loss Function and Optimizer

loss_object = tf.keras.losses.SparseCategoricalCrossentropy()

def loss(model, x, y, wd):
    kernel_variables = []
    for l in model.layers:
        for w in l.weights:
            if 'kernel' in w.name:
                kernel_variables.append(w)
    wd_penalty = wd * tf.reduce_sum([tf.reduce_sum(tf.square(k)) for k in kernel_variables])
    y_ = model(x)
    return loss_object(y_true=y, y_pred=y_) + wd_penalty

optimizer = tf.keras.optimizers.Adam(learning_rate=0.001)

Train the Model

Define a function to compute the forward and backward pass:

def grad(model, inputs, targets, wd):
    with tf.GradientTape() as tape:
        loss_value = loss(model, inputs, targets, wd)
    return loss_value, tape.gradient(loss_value, model.trainable_variables)

Implement the training loop:

start_time = time.time()
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, train_labels))
train_dataset = train_dataset.batch(32)
train_loss_results = []
train_accuracy_results = []

num_epochs = 10
weight_decay=0.005

for epoch in range(num_epochs):
    epoch_loss_avg = tf.keras.metrics.Mean()
    epoch_accuracy = tf.keras.metrics.CategoricalAccuracy()

    for x, y in train_dataset:
        loss_value, grads = grad(model, x, y, weight_decay)
        optimizer.apply_gradients(zip(grads, model.trainable_variables))

        epoch_loss_avg(loss_value)
        epoch_accuracy(to_categorical(y), model(x))
    train_loss_results.append(epoch_loss_avg.result())
    train_accuracy_results.append(epoch_accuracy.result())
    print(f"Epoch {epoch}, Loss {epoch_loss_avg.result()}, Accuracy {epoch_accuracy.result()} ")

print("Duration :{:.3f}".format(time.time() - start_time))

Evaluate the Model

Create a Dataset object for the test set:

test_dataset = tf.data.Dataset.from_tensor_slices((x_test, test_labels))
test_dataset = test_dataset.batch(32)

Collect average loss and accuracy:

epoch_loss_avg = tf.keras.metrics.Mean()
epoch_accuracy = tf.keras.metrics.CategoricalAccuracy()

Loop over the test set and print scores:

for x, y in test_dataset:
    # Optimize the model
    loss_value = loss(model, x, y, weight_decay)
    # Compute current loss
    epoch_loss_avg(loss_value)
    # Compare predicted label to actual label
    epoch_accuracy(to_categorical(y), model(x))

print("Test loss: {:.3f}".format(epoch_loss_avg.result().numpy()))
print("Test accuracy: {:.3%}".format(epoch_accuracy.result().numpy()))

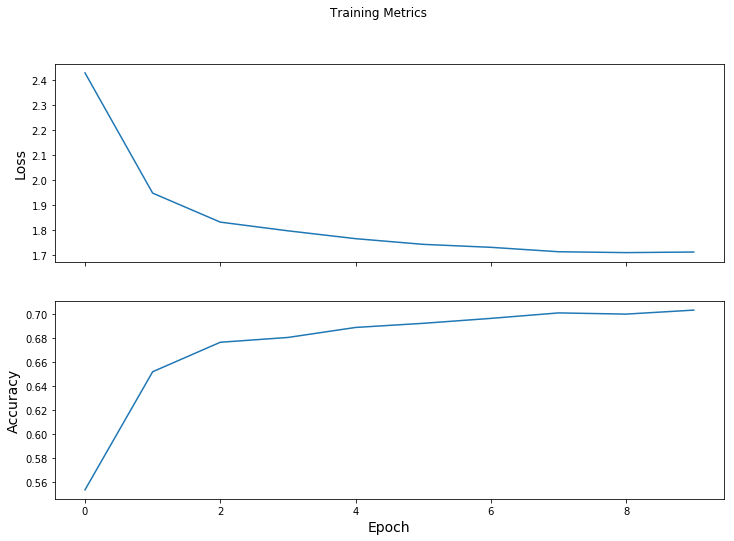

Plot the Learning Curves

fig, axes = plt.subplots(2, sharex=True, figsize=(12, 8))
fig.suptitle('Training Metrics')

axes[0].set_ylabel("Loss", fontsize=14)
axes[0].plot(train_loss_results)

axes[1].set_ylabel("Accuracy", fontsize=14)
axes[1].set_xlabel("Epoch", fontsize=14)
axes[1].plot(train_accuracy_results)
plt.show()

Predict from the Model

predicted_label = np.argmax(model(x_train[np.newaxis,0]),axis=1)[0]
print("Prediction: {}".format(class_names[predicted_label]))
print("     Label: {}".format(class_names[train_labels[0]]))
